Enscale SSH Access

Why is SSH access useful?

The Enscale PaaS frees you from tedious server admin, so why would you want SSH access anyway?

Many popular frameworks now include CLI tools to perform various important tasks such as clearing the cache following code changes or easing site migrations. E.g. Laravel’s Artisan, Drupal’s drush, and Symfony2’s console to name just a few.

Of course, SSH access also gives you the freedom to install and run your own CLI code, such as Composer, the PHP dependency manager.

You might need to run your own custom git or svn commands; useful for conflict resolution, or if you need to push some changes from the server back to your repo – but note that any projects you create entirely via SSH will not appear within the Enscale dashboard (e.g. for auto-update purposes).

SSH access to database nodes enables you to import (or export) large .sql databases more easily, without needing to worry about PHP script limitations on phpMyAdmin/phpPgAdmin.

You can also use SSH to access application server level CLI tools such as asadmin or sanity check your Apache configuration file edits (service httpd configtest) before restarting the httpd service.

Enscale SSH architecture

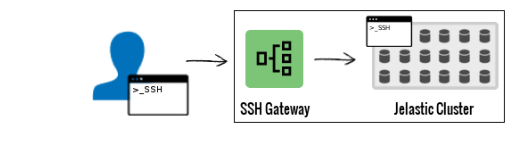

SSH access in Enscale is via an intermediary SSH Gateway, which keeps your individual servers more securely protected. The gateway uses key based authentication and then provides you with a simple text driven menu to access the desired node from any of your (running) environments.

SSH connection settings

How to add your SSH key

• Log in to your Enscale dashboard

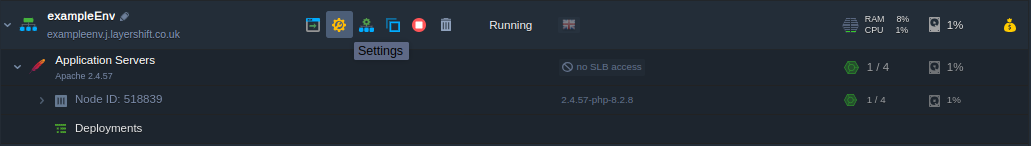

• Select the desired environment and press Settings:

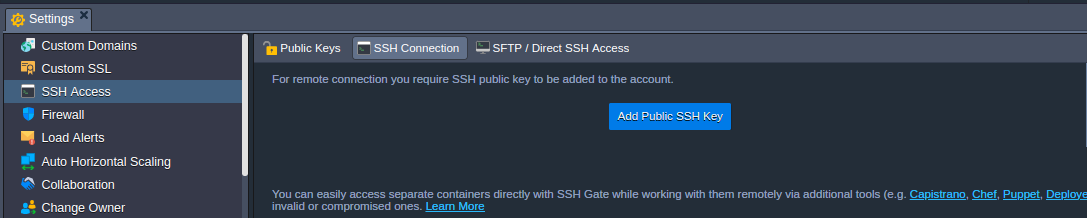

• From the menu, access SSH Access and press Add Public SSH Key:

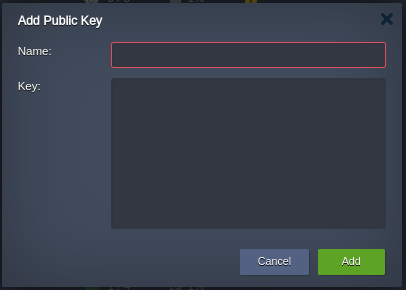

• Enter a meaningful Name to help you identify this key in future, and copy/paste the SSH key into the Key box.

Repeat this process to add as many keys as needed, for each device that you wish to grant access to your Enscale environments.

Connect to the SSH gateway

After you’ve added your keys, you’ll see the connection settings right above. Something like this:

ssh 4856@sshgateway.io -p 3022

If you’re a Linux or Mac user, you can just click on that text in your dashboard and it’ll open up a terminal ssh session with those details on your behalf. However, if you’re using PuTTY or any other GUI based client (on your smartphone or tablet for example) that probably won’t work. So let’s take a moment to explain the important parts of that command in case you need to enter the connection settings manually:

• 4856 is the user. This will be different for you, so make sure to check your own dashboard!

• sshgateway.io is the hostname for the SSH gateway that you’re connecting to

• 3022 is the port number

Once connected you will see a menu listing all of your environments and their current status (stopped/running etc.). You can only access running environments. Simply select the desired environment to reach a list of individual nodes (virtual servers) contained within the environment.

System user permissions

You are logged into each node as the primary system user for that given service. For example, on an Apache node you are logged in as the apache system user, and on a MySQL node you are logged in as the mysql system user etc. This simplifies issues such as file ownership/access, and is generally preferable for running application utilities such as drush.

You don’t have root level access, so cannot install or update system rpm’s – but because Enscale is a PaaS you don’t need to!

However, you have limited sudo permission to run selected commands such as sudo service httpd restart:

-bash-4.1$ service httpd configtest
Syntax OK

-bash-4.1$ service httpd restart
rm: cannot remove `/var/run/httpd/httpd.pid': Permission denied [FAILED]
Starting httpd: touch: cannot touch `/var/lock/subsys/httpd': Permission denied

-bash-4.1$ service httpd restart
rm: cannot remove `/var/run/httpd/httpd.pid': Permission denied [FAILED]
Starting httpd: touch: cannot touch `/var/lock/subsys/httpd': Permission denied

If you receive a password prompt when using sudo it means that command is not permitted: please contact us with your feedback if this is blocking something essential for your needs!

-bash-4.1$ sudo vim /etc/hosts
[sudo] password for apache:

Enscale SSH access for scripts

The SSH gateway described above is great for human users, but because it’s interactive it’s not so easy for a script to connect and navigate. If you want to scp, rsync, or even use SFTP the menu system gets in your way. But don’t worry – we have a solution!

Find your Node ID

via Dashboard:

• Log in to your dashboard, and navigate to the desired environment

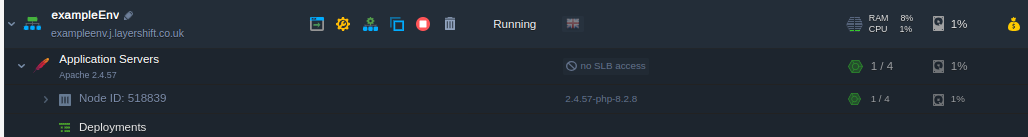

• Expand the UI to reveal the ID of the individual node you want to connect to:

via SSH gateway

• Connect to the SSH gateway as normal, and navigate the menus to the desired environment

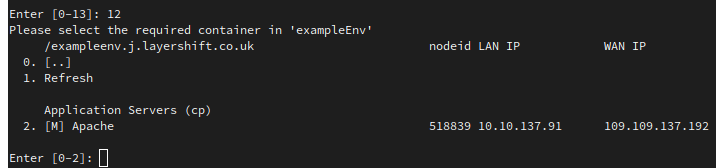

• Make a note of the nodeid in the environment’s node list:

Connect

Establish a new SSH connection with the username in the format: nodeid-uid@sshgateway.io -p 3022 (all other details are the same, including port number)

Authentication remains key-based (so you need to add the key via the dashboard as normal), but using this scheme you can create direct SSH connections for use in automated deployment scripts etc.

Examples

Using the example user ID from above (4856):

SSH:

• Apache: ssh 518839-35526@sshgateway.io -p 3022

SFTP:

• Apache: sftp -P 3022 518839-35526@sshgateway.io
